1 PC Cast Steel Floating Ball Valve

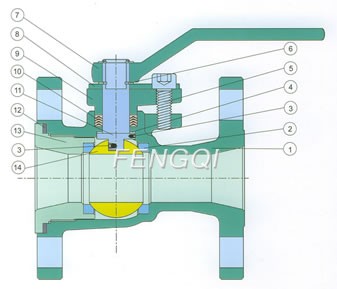

1 PC cast steel floating ball valve series product construction
1 PC cast steel floating ball valve features & specifications
Size: 1/2"~4" |
Design | ASME 16.34/API 608 |
| Class: 150~300Lb | Face to Face | ASME B16.10 |
| One Piece Cast Steel Body | End to End | ASME B16.10 |
| Floating Ball, Reduced Bore | End Flange | ASME B16.5 |
| Anti-Static Device | Test | API 598/ BS 6755 |
| Blow-out Proof Stem | Fire Safe Test | API 607/API 6FA |
| Fire Safe Design | Special | NACE MR-01-75 |
1 PC cast steel floating ball valve material specifications
| No. | Part | Material |
| 1 | Body | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M |
| 2 | Seat | PTFE RTPFE PEEK PPL |
| 3 | Antistatic Spring | Stainless Steel S.S.316 |
| 4 | Thrust Washer | PTFE |
| 5 | Screw | ASTM A193-B7, B8 |
| 6 | Retainer | Carbon Steel |
| 7 | Lever | A216-WCB |
| 8 | Limited Plate | 1015+Cr. Carbon Steel+Cr. |
| 9 | Gland Flange | A216-WCB A351-CF8 |
| 10 | Packing | PTFE Graphite |
| 11 | Stem | ASTM A105+ENP A182-F6, F316, F316L, F304L 17-4PH |
| 12 | Gasket | PTFE S.S.304+Graphite S.S.316+Graphite |
| 13 | Screwed Cover | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M |
| 14 | Ball | A351-CF8, CF8M, CF3, CF3M |
1 PC cast steel floating ball valve dimensions & weight Class 150
| Size | d | d1 | A | H | W | Weight |
| in | mm | mm | mm | mm | mm | Kg |
| 1/2 | 10 | 13 | 108 | 89 | 129 | 5.4 |
| 3/4 | 15 | 19 | 117 | 89 | 129 | 6.0 |
| 1 | 19 | 25 | 127 | 90 | 170 | 6.6 |
| 1-1/2 | 32 | 40 | 165 | 106 | 224 | 7.8 |
| 2 | 38 | 50 | 178 | 111 | 224 | 12 |
| 3 | 59 | 80 | 203 | 146 | 356 | 23 |
| 4 | 76 | 102 | 229 | 171 | 356 | 38 |
1 PC cast steel floating ball valve dimensions & weight Class 300
Size |
d | d1 | A | H | W | Weight |
| in | mm | mm | mm | mm | mm | Kg |
| 1/2 | 10 | 13 | 140 | 89 | 129 | 6.0 |
| 3/4 | 15 | 19 | 152 | 89 | 129 | 6.6 |
| 1 | 19 | 25 | 165 | 90 | 170 | 7.2 |
| 1-1/2 | 32 | 40 | 191 | 106 | 224 | 13 |
| 2 | 38 | 50 | 216 | 111 | 224 | 18 |
| 3 | 59 | 80 | 283 | 160 | 356 | 36 |
| 4 | 76 | 102 | 305 | 186 | 506 | 54 |
Note: 1. The technical data is subject to amend without notice, while is subject to the actual product. 2. If you have any alteration, please note when you ordering.
