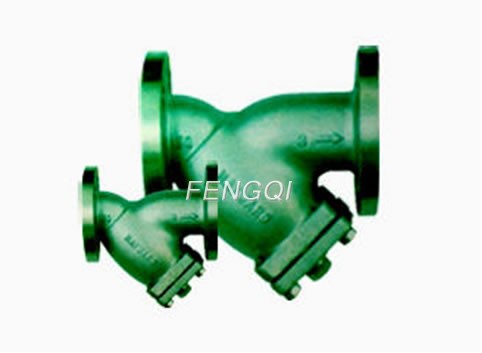

Cast Steel Y Strainer Series

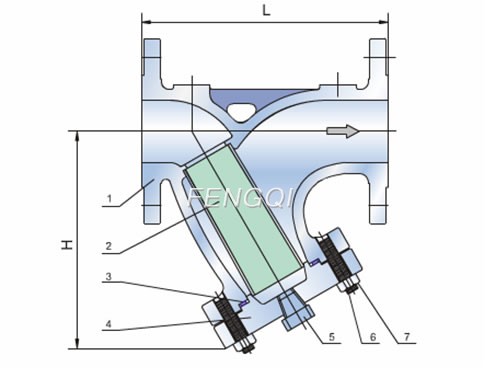

Cast steel Y strainer series product construction
Cast steel Y strainer series features & specifications
Design |
ASME B16.34 |
| Face to Face | ASME B16.10 |
| End Flange | ASME B16.5 |
| Test | API 598 |
Cast steel Y strainer series standard materials of main parts
ITEM |
PART NAME | MATERIAL |
| 1 | Body | ASTM A216 GR.WCB |
| 2 | Screen | ASTM A276 Type 304 |
| 3 | Gasket | 304+Graphite |
| 4 | Cover | ASTM A216 GR.WCB |
| 5 | Plug | ASTM A105 |
| 6 | Cover Bolts | ASTM A193 GR.B7 |
| 7 | Cover Bolt Nuts | ASTM A194 GR.2H |
Cast steel Y strainer series Class 150 dimensions & weights
Size |
L | H | Weight | |||
| in | mm | in | mm | in | mm | kg |
| 2" | 50 | 8.00 | 203 | 5.71 | 145 | 12 |
| 2.5" | 65 | 8.50 | 216 | 7.20 | 183 | 18 |
| 3" | 80 | 9.50 | 241 | 8.11 | 206 | 21 |
| 4" | 100 | 11.50 | 292 | 8.98 | 228 | 32 |
| 6" | 150 | 16.00 | 406 | 12.95 | 329 | 48 |
| 8" | 200 | 19.50 | 495 | 17.32 | 440 | 105 |
| 10" | 250 | 24.50 | 622 | 19.96 | 507 | 169 |
| 12" | 300 | 27.50 | 699 | 23.39 | 594 | 215 |
Cast steel Y strainer series Class 300 dimensions & weights
Size |
L | H | Weight | |||
| in | mm | in | mm | in | mm | kg |
| 2" | 50 | 10.50 | 267 | 6.70 | 170 | 15 |
| 2.5" | 65 | 11.50 | 292 | 7.28 | 185 | 18 |
| 3" | 80 | 12.50 | 318 | 9.25 | 235 | 35 |
| 4" | 100 | 14.00 | 356 | 11.42 | 290 | 51 |
| 6" | 150 | 17.50 | 445 | 14.76 | 375 | 92 |
| 8" | 200 | 22.00 | 559 | 17.72 | 450 | 182 |
| 10" | 250 | 24.50 | 622 | 22.64 | 575 | 285 |
| 12" | 300 | 28.00 | 711 | 26.18 | 665 | 307 |
Cast steel Y strainer series Class 600 dimensions & weights
Size |
L | H | Weight | |||
| in | mm | in | mm | in | mm | kg |
| 2" | 50 | 11.50 | 292 | 7.28 | 185 | 35 |
| 2.5" | 65 | 13.00 | 330 | 7.87 | 200 | 40 |
| 3" | 80 | 14.00 | 356 | 9.84 | 250 | 48 |
| 4" | 100 | 17.00 | 432 | 11.81 | 300 | 90 |
| 6" | 150 | 22.00 | 559 | 16.34 | 415 | 220 |
| 8" | 200 | 26.00 | 660 | 19.29 | 490 | 360 |
| 10" | 250 | 31.00 | 787 | 23.43 | 595 | 500 |
| 12" | 300 | 33.00 | 838 | 26.77 | 680 | 781 |
Note: 1. The technical data is subject to amend without notice, while is subject to the actual product.
2. If you have any alteration, please note when you ordering.
