Instrumentation Ball Valves, NPT Lagging Extension to Flange
Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
NPT Lagging Extension to Flange
PN 6.4 MPa Dimensions:

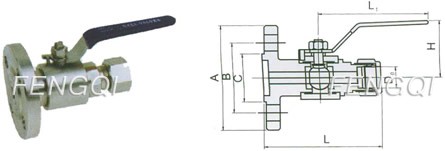

PN 6.4 MPa- NPT Lagging Extension to Flange-Dimensions
| SPECIFICATION | Do | L | H | L1 | A |
| DN3 | Φ10 | 105 | 44 | 110 | 90 |
| DN6 | Φ12 | 106 | 44 | 110 | 90 |
| DN10 | Φ14 | 108 | 44 | 110 | 90 |
