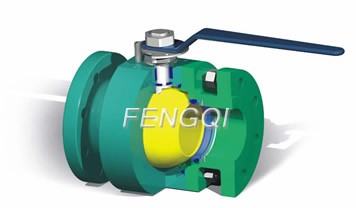

Metal Seated Ball Valves
Metal Seated Ball Valves
Features
Size: 1/2"~20"
Class: 150 / 300 Lb
Two-Piece Forged Steel Body
Floating Ball, Full & Reduced Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
High Temperature Service
General soft seated ball valves working temperature is limited up to 400F , but metal-seated ball valves are guaranteed for a maximum service temperature of 800 F.
Low Pressure Reliable Sealing
Enine metal-seated ball valves adopt seat spring structure, which can push upstream seat tightly against the ball surface creating a reliable sealing even if extremely low pressure.
Absolute Fire Safe Guarantee
Enine metal-seated ball valves are absolute fire safe design. Metal-to-metal contact is designed between ball and seat, where is unconditional fire safe function. Flexible graphite gasket can prevent fluid leakage from between body & seat or body & adapter even if high temperature environments to reach fire-safe purpose. In addition, other sealing components such as stem packing can also reach fire-safe function and prevent external leakage. So all parts of the valve will not be affected by high temperature service.
Blow-out Proof Stem& Anti-Static Device
As general ball valves, Enine metal-seated ball valves are provided with blow-out proof stem& anti- static device.
Materials

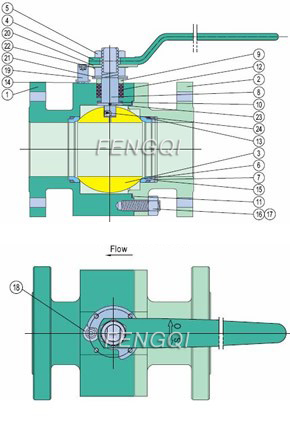

Materials of Metal Seated Ball Valves
| No. | Part | Material |
| 1 | Body | ASTM A105 or A182-F316 |
| 2 | Adapter | ASTM A105 or A182-F316 |
| 3 | Ball | ASTM A182-F316 / Hard chrome-plated or Stellite 6 faced |
| 4 | Lever | Carbon Steel |
| 5 | Nut | Carbon Steel or Stainless Steel |
| 6 | Seat | ASTM A182-F316 / Stellite 6 faced |
| 7 | Push Ring | Stainless Steel |
| 8 | Stem | ASTM A182-F316 |
| 9 | Gland | Stainless Steel |
| 10 | Thrust Washer | Graphite |
| 11 | Body Gasket | 316+Graphite |
| 12 | Stem Packing | Graphite |
| 13 | Seat Packing | Graphite |
| 14 | Washer | Carbon Steel or Stainless Steel |
| 15 | Dished Spring | Stainless Steel |
| 16 | Body Stud | ASTM A193-B7 or A193-B8 |
| 17 | Body Nut | ASTM A194-2H or A194-8 |
| 18 | Locked Plate | Carbon Steel or Stainless Steel |
| 19 | Screw | Carbon Steel or Stainless Steel |
| 20 | Stop Plate | Carbon Steel or Stainless Steel |
| 21 | Dished Spring | Alloy Steel or Stainless Steel |
| 22 | Locked Washer | Carbon Steel or Stainless Steel |
| 23 | Steel Ball | Stainless Steel |
| 24 | Antistatic Spring | Stainless Steel |
ASME Pressure Class 150 Lb-Two-Piece(2PC)-Metal Seated (ASTM A182-F316 / Stellite 6 faced)
Flanged Ends-Forged-Floating-Full Bore-Dimensions and Weights
| Size | D | L | H | W | Weight |
| in | mm | mm | mm | mm | Kg |
| 1/2 | 13 | 108 | 75 | 130 | 2.3 |
| 3/4 | 19 | 117 | 84 | 170 | 2.5 |
| 1 | 25 | 127 | 90 | 170 | 3.5 |
| 1-1/2 | 38 | 165 | 127 | 250 | 7.3 |
| 2 | 51 | 178 | 140 | 250 | 9.8 |
| 2-1/2 | 64 | 191 | 164 | 350 | 15 |
| 3 | 76 | 203 | 177 | 350 | 18 |
| 4 | 102 | 229 | 206 | 420 | 33 |
| 5 | 125 | 356 | 292 | 700 | 57 |
| 6 | 152 | 394 | 320 | *1000 | 66 |
| 8 | 203 | 457 | 398 | *320 | 170 |
| 10 | 254 | 533 | 495 | *350 | 255 |
| 12 | 305 | 610 | 580 | *400 | 390 |
| 14 | 337 | 686 | 625 | *500 | 510 |
| 16 | 387 | 762 | 720 | *500 | 820 |
| 18 | 438 | 864 | 770 | *500 | 1010 |
| 20 | 489 | 914 | 840 | *500 | 1828 |
ASME Pressure Class 150 Lb-Two-Piece(2PC)-Metal Seated (ASTM A182-F316 / Stellite 6 faced)
Flanged Ends-Forged-Floating-Reduce Bore-Dimensions and Weights
| Size | d | d1 | L | H | W | Weight |
| in | mm | mm | mm | mm | Kg | |
| 3/4-1/2 | 13 | 19 | 117 | 75 | 130 | 2.7 |
| 1*3/4 | 19 | 25 | 127 | 84 | 170 | 3 |
| 1-1/2*1 | 25 | 38 | 165 | 90 | 170 | 4.3 |
| 2*1-1/2 | 38 | 51 | 178 | 127 | 250 | 9.5 |
| 2-1/2*2 | 51 | 64 | 190 | 140 | 250 | 12 |
| 3*2 | 51 | 76 | 203 | 140 | 250 | 16.5 |
| 4*3 | 76 | 102 | 229 | 177 | 350 | 24 |
| 6*4 | 102 | 152 | 394 | 206 | 420 | 43 |
| 8*6 | 152 | 203 | 457 | 320 | *1000 | 85.5 |
| 10*8 | 203 | 254 | 533 | 398 | *320 | 214 |
| 12*10 | 254 | 305 | 610 | 495 | *350 | 284 |
| 14*12 | 305 | 337 | 686 | 580 | *400 | 418 |
| 16*14 | 337 | 387 | 762 | 625 | *500 | 612 |
| 18*16 | 387 | 428 | 864 | 720 | *500 | 970 |
| 20*18 | 428 | 489 | 914 | 770 | *500 | 1137 |
| 24*20 | 489 | 591 | 1067 | 840 | *500 | 2000 |
ASME Pressure Class 300 Lb-Two-Piece(2PC)-Metal Seated (ASTM A182-F316 / Stellite 6 faced)
Flanged Ends-Forged-Floating-Full Bore-Dimensions and Weights
| Size | D | L | H | W | Weight |
| in | mm | mm | mm | mm | Kg |
| 1/2 | 13 | 140 | 75 | 130 | 3.5 |
| 3/4 | 19 | 152 | 84 | 170 | 4.2 |
| 1 | 25 | 165 | 90 | 170 | 5.8 |
| 1-1/2 | 38 | 191 | 127 | 250 | 10.5 |
| 2 | 51 | 216 | 140 | 250 | 14 |
| 2-1/2 | 64 | 241 | 164 | 350 | 19 |
| 3 | 76 | 283 | 177 | 350 | 31 |
| 4 | 102 | 305 | 206 | 420 | 54 |
| 6 | 152 | 403 | 320 | *280 | 135 |
| 8 | 203 | 502 | 398 | *320 | 210 |
| 10 | 254 | 568 | 495 | *350 | 391 |
| 12 | 305 | 648 | 580 | *400 | 550 |
| 14 | 337 | 762 | 625 | *500 | 710 |
| 16 | 387 | 838 | 720 | *500 | 1250 |
| 18 | 438 | 914 | 770 | *500 | 1300 |
| 20 | 489 | 991 | 840 | *500 | 2180 |
| 24 | 591 | 1143 | 920 | *600 | 2930 |
ASME Pressure Class 300 Lb-Two-Piece(2PC)-Metal Seated (ASTM A182-F316 / Stellite 6 faced)
Flanged Ends-Forged-Floating-Reduce Bore-Dimensions and Weights
| Size | d | d1 | L | H | W | Weight |
| in | mm | mm | mm | mm | Kg | |
| 3/4-1/2 | 13 | 19 | 152 | 75 | 130 | 4 |
| 1*3/4 | 19 | 25 | 165 | 84 | 170 | 5 |
| 1-1/2*1 | 25 | 38 | 190 | 90 | 170 | 7 |
| 2*1-1/2 | 38 | 51 | 216 | 127 | 250 | 12 |
| 2-1/2*2 | 51 | 64 | 241 | 140 | 250 | 17 |
| 3*2 | 51 | 76 | 283 | 140 | 250 | 21.5 |
| 4*3 | 76 | 102 | 305 | 177 | 350 | 37 |
| 6*4 | 102 | 152 | 403 | 206 | 420 | 66 |
| 8*6 | 152 | 203 | 502 | 320 | *280 | 164 |
| 10*8 | 203 | 254 | 568 | 398 | *320 | 350 |
| 12*10 | 254 | 305 | 648 | 495 | *350 | 400 |
| 14*12 | 305 | 337 | 762 | 580 | *400 | 590 |
| 16*14 | 337 | 387 | 838 | 625 | *500 | 850 |
| 18*16 | 387 | 428 | 914 | 720 | *500 | 1220 |
| 20*18 | 428 | 489 | 991 | 770 | *500 | 1460 |
| 24*20 | 489 | 591 | 1143 | 840 | *500 | 2220 |
