Valves
One Piece (1-PC), Switching (3-Way), Instrumentation Ball Valves
Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
One Piece (1-PC), Ball
Tube fitting and Female NPT End
Switching (3-Way)

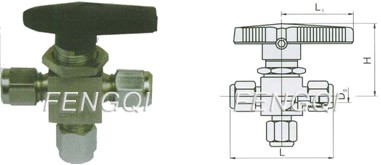

PN 6.4 MPa- Tube Fitting Nuts- Switching (3-Way)-Dimensions:
PN 6.4 MPa- Tube Fitting Nuts- Switching (3-Way)-Dimensions
| SPECIFICATION | Do | L | L1 | H |
| DN3 | Φ6 | 60 | 38 | 32 |
| DN6 | Φ8 | 65 | 38 | 42 |
| DN10 | Φ10 | 75 | 38 | 50 |

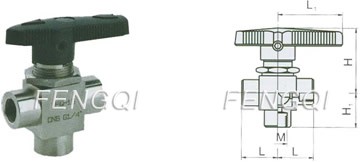

PN 6.4 MPa- Female NPT Ends- Switching (3-Way)-Dimensions:
PN 6.4 MPa- Female NPT Ends- Switching (3-Way)-Dimensions
| SPECIFICATION | L | L1 | M | H | H1 |
| DN3 | 20 | 30 | M12×1.25 | 32 | 20 |
| DN3 | 20 | 30 | ZG1/8 | 32 | 20 |
| DN6 | 25 | 38 | ZG1/4 | 42 | 25 |
