QY-2 Socket Type Ball Valve

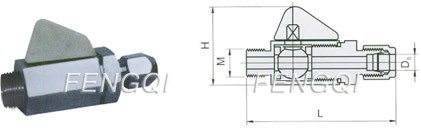

Diagram:
QY-2 Socket type ball valve diagram
Performance Criterion:
QY-2 Socket type ball valve is Applicable to:
Medium:Air,Oil article, Water.
Material: 304SS 316SS 20#,
Connection: Clamp connection
Connecting Dimensions:
| SPECIFICATION | Do | L | H | M | NOMINAL PRESSURE |
| DN3 | Φ6 | 80 | ~40 | G1/2 | =1MPa |
| DN6 | Φ8 | 84 | ~40 | ZG1/4 | =1MPa |
| DN10 | Φ10 | 90 | ~40 | ZG3/8 | =1MPa |
