Pressure Relief & Sustaining Control Valves

Features

The Pressure Relief & Sustaining Control Valve maintains the inlet pressure at minimal reselected value. To hold a steady line pressure the valve is opening fast and closed gradually to prevent surge. If installed on a by-pass line, main line pressure is accurately controlled by relief of excess pressure.
500X Pressure Relief & Sustaining Control Valve is used in the pipeline system to prevent of surpassing pressure or to keep the pressure of it, to reduce the water hammers shock after the pump is closed and also used as a water hammer remover in the large water supply system. A self cleaning filter screen is placed on the inlet of the valves control system, which stops the suspension grains of the bigger specific gravity and diameter from going into the system by means of the bigger specific gravity of the fluid to ensure the main valves water supply pressure at the upstream at the set value, and to get the system circulated smoothly without any resistance. This valve features by sensitive open-close, safety, reliability, stable motion and long duration.

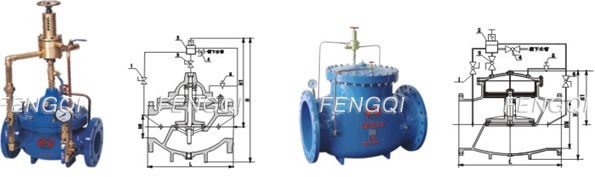

Pressure Relief & Sustaining Control Valves

1. Small Ball Valve
2. Pilot Valve
3. Small Ball Valve
4. Small Ball Valve
5. Needle Valve

Technical Parameters

Nominal Pressure: 1.0, 1.6, 2.5MPa
Shell test pressure: 1.5, 2.4, 3.75MPa
Sealed test pressure : 1.1, 1.76, 2.75MPa
Suitable temperature: 80
Suitable medium: water, Sewage

Materials

Dimensions

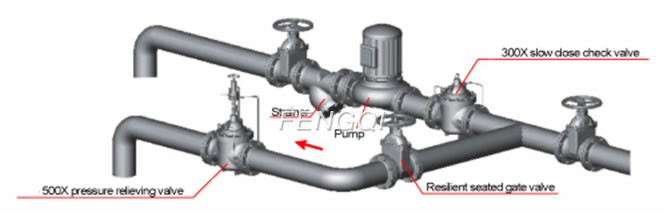

Typical Installation
