Solenoid Float Control Valves
Features

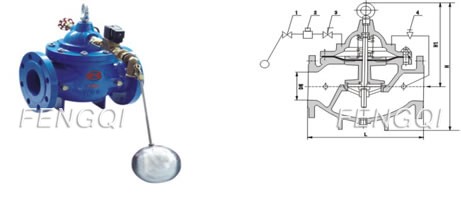

Solenoid Float Control Valves is with normal open (normal close) Solenoid control equipment based on 100x Float Control Valves. So even if there is no electric power or the flow could not work, it can assure the water level is not beyond the set level and the electric float valve can preset the on/off water level to solve the problem of main valve's frequently opening/closing. This kind of valve is widely used in high building, feeding system, fire protection, at the inlet of water pool and water tower of enterprises.
Solenoid Float Control Valves

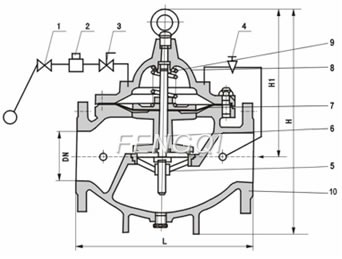

1. Float Ball Pilot Valve 2. Solenoid Valve 3. Ball Valve 4. Needle Valve
Technical Parameters
Nominal Pressure: 1.0, 1.6, 2.5MPa
Shell test pressure: 1.5, 2.4, 3.75MPa
Sealed test pressure : 1.1, 1.76, 2.75MPa
Suitable temperature: 80
Suitable medium: water, Sewage
Materials
| Serial No. | Part | Material |
| 1 | Little Ball Valve | |
| 2 | Pilot Valve | |
| 3 | Flow Adjustor | |
| 4 | Needle Valve | |
| 5 | Seat | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
| 6 | Stem | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
| 7 | Diaphragm | Rubber |
| 8 | Cover | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
| 9 | Spring | Spring Steel |
| 10 | Body | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
Dimensions
| DNmm | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | |
| L | 180 | 180 | 180 | 203 | 203 | 235 | 285 | 360 | 400 | 455 | 585 | 650 | 800 | 860 | 915 | 980 | 1075 | 1230 | 1300 | 1450 | |
| PN10 | D | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 390 | 440 | 500 | 565 | 615 | 670 | 780 | 895 | 1010 |
| D1 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 725 | 840 | 950 | |
| PN16 | D | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 405 | 460 | 520 | 580 | 640 | 705 | 840 | 910 | 1020 |
| D1 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 | 840 | 950 | |
| PN25 | D | 105 | 110 | 135 | 145 | 160 | 180 | 195 | 230 | 270 | 300 | 360 | 425 | 485 | 550 | 610 | 660 | 730 | 840 | 955 | 1070 |
| D1 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 | 220 | 250 | 310 | 370 | 430 | 490 | 550 | 600 | 660 | 770 | 875 | 990 | |
| H | 212 | 212 | 212 | 265 | 265 | 310 | 350 | 460 | 520 | 570 | 695 | 780 | 905 | 1025 | 1080 | 1030 | 1135 | 1270 | 1460 | 1640 | |
| H1 | 179 | 179 | 179 | 210 | 210 | 215 | 245 | 305 | 365 | 415 | 510 | 560 | 658 | 696 | 735 | 610 | 665 | 725 | 865 | 975 | |

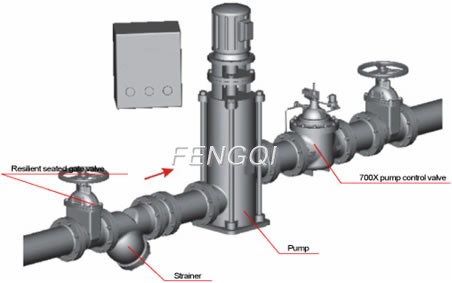

Typical Installation
