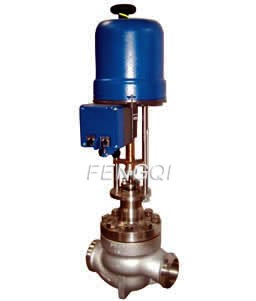

CV3000-DHCB Electric Cage Regulative Valve

CV3000-DHCB Electric Cage Regulative Valve

Structural features and applied range

CV3000-KHCB electric cage regulator is pressure balanced regulator, trims use socket oriented guide valve core, it mainly uses fluid pressure to realize valve core rapid movement, operating force is small. In addition, sealing type uses single seat sealing, high precision flow characteristic curve, in accordance with IEC534-1 standard. Regulator dynamic stability is good, noise is low, and air defense, it is suitable for controling kinds of temperature high pressure difference flow. Equipped with electric actuators, its structure is compact, and output is large.
The product conforms to the GB/T4213-92.

Technical parameters and performance indicators

body
body type straight cast spherical valve
nominal diameter 100～300mm
nominal pressure
ANSI: 125、150、300、600Lb
JIS: 10、16、20、30、40K
PN: 1.6、4.0、6.4MPa
connection
flange connection：FF、RF、RJ、LG
flange standard：JIS B2201-1984 or ANSI B16.5、JB/T79.1 PN1.6MPa、JB/T79.2female and male face
welding connection：BW
body material ZG25 ZG1Cr18Ni9Ti、ZG0Cr17Ni12Mo2、1.25Cr0.5Mo 5.0Cr0.5Mo or SCPH21 SCPH61 Ti
upper bonnet
normal temperature（P）：-17～+230℃
extend I type（EⅠ）：-45～-17℃ +230～+566℃
extend Ⅱ type（EⅡ）： integral type（E2I）-100～-45℃welding type（E2W）-196～-100
℃ Note: working temperature can not exceed the various materials allowed range
gland type: bolt pressure type
Sealing packing V type PTFE packing, containing PTFE leached asbestos packing, asbestos weave packing, graphite packing
Internal components
valve core type guide valve core
material 17-4PH、0Cr17Ni12Mo2 and bead weld stellite
actuator
type
DKZ series electric actuator；
361L series electric actuator；
SKZ series electric actuator；
PSL series electric actuator
input signal
DKZ actuator: Ⅱ0～10mA?DC(input resistance 200Ω)；Ⅲ4～20mA?DC(input resistance 250Ω)
361L actauator : 4～20mA?DC、1～5V?DC(input resistance 250Ω)
SKZ actuator: 4～20mA?DC、1～5V?DC
PSL actuator: 4～20mA?DC
power supply
DKZ actuator：220V，50Hz
361L actuator：220V，50Hz
SKZ actuator：single phase control 220V，50Hz
PSL actuator：single phase control 220V，50Hz；three phase control 380V，50Hz
manual mechanism
DKZ actuator：handwheel
361L actuator：on-off type
SKZ actuator：handwheel
PSL actuator: handwheel
valve acting type electric-close type or electic-open type
Annex locator, handwheel mechanism, valve position transmitter, etc
Performance
Leakage
in accordance with ANSI B16.104 Class Ⅳ，less than 0.01% of rated Cv
return difference
Equipped with DKZ actuators is 1.5%; equipped with 361L actuators is 2%, equipped with SKZ actuators is 1%, equipped with PSL actuators is 1%
intrinsic error
Equipped with DKZ actuators is ±2.5%; equipped with 361L actuators is ±2%, equipped with SKZ actuators is ±1.5%, equipped with PSL actuators is ±1%
Note: using normal V type PTFE packing
adjustable scope 50：1
