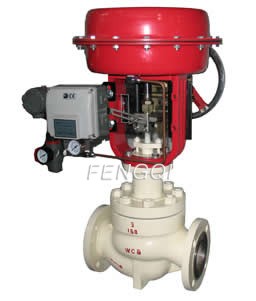

CV3000-HCB Cage Regulative Valve

CV3000-HCB Cage Regulative Valve

Structural features and applied range

CV3000-HCB cage regulator is pressure balanced regulator, trims use socket oriented guide valve core, it mainly uses fluid pressure to realize valve core rapid movement, operating force is small. In addition, sealing type uses single seat sealing, high precision flow characteristic curve, in accordance with IEC534-1 standard. Regulator dynamic stability is good, noise is low, and air defense, it is suitable for controling kinds of temperature high pressure difference flow. Equipped with electric actuators, its structure is compact, and output is large.
The product conforms to the GB/T4213-92.

Technical parameters and performance indicators

body
body type straight cast spherical valve
nominal diameter 100～300mm
nominal pressure
ANSI: 125、150、300、600Lb
JIS: 10、16、20、30、40K
PN: 1.6、4.0、6.4MPa
connection
flange connection：FF、RF、RJ、LG
flange standard：JIS B2201-1984 or ANSI B16.5、JB/T79.1 PN1.6MPa、JB/T79.2 demale and male surface
welding connection：BW
body material ZG25 ZG1Cr18Ni9Ti、ZG0Cr17Ni12Mo2、1.25Cr0.5Mo 5.0Cr0.5Mo or SCPH21 SCPH61 Ti
upper bonnet
normal temperature（P）：-17～+230℃
extend I type（EⅠ）：-45～-17℃ +230～+566℃
extend Ⅱ type（EⅡ）： integral type（E2I）-100～-45℃ welding type（E2W）-196～-100℃
Note: working temperature can not exceed the various materials allowed range
gland type: bolt pressure type
Sealing packing V type PTFE packing, containing PTFE leached asbestos packing, asbestos weave packing, graphite packing
Internal components
valve core type guide valve core
material 17-4PH、0Cr17Ni12Mo2 and bead weld stellite
actuator
Type ZHA(B) multi-spring diaphram actuator
diaphragm material NBR with nylon
spring range 0.02～0.10MPa、0.08～0.24MPa
air supply pressure 0.14、0.16、0.28、0.35MPa
air source interface Rc 1/ 4
environmental temperature -30～+70℃
valve acting type pneumatic-close or pneumatic-open
Annex locator, handwheel mechanism, valve position transmitter, etc
Performance
Leakage
in accordance with ANSI B16.104 Class Ⅳ，less than 0.01% of rated Cv
return differential 3%（without locator）、1%（with locator）
intrinsic error ±5%（without locator）、±1%（with locator）
Note: using normal V type PTFE packing
adjustable scope 50：1
