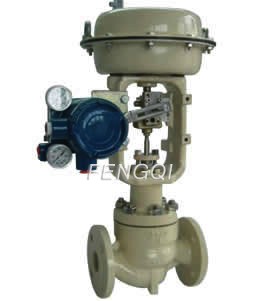

CV3000-HSC Cage Single Seat Regulative Valve

CV3000-HSC Cage Single Seat Regulative Valve

Structural features and applied range

CV3000-HSC cage single-seat regulator is suitable for braising cavitation occasion that high pressure differential is easy to generate, is a high-performance single seat regulator, strong protection sleeve protects valve from braising and cavitation damage. The structure is compact, with “S” streamline channel, reducing the pressure drop, large flow, wide adjustable scope. Valve core guide area is large, anti-vibration is good. The leakage of regulator conforms to ANSI B16.104 standard. Regulator euipped with multi-spring diaphragm actuator, its structure is compact, and output is large.
The product conforms to the GB/T4213-92, VDS4006-92 standard.

Technical parameters and performance indicators

body
body type straight signle seat cast spherical valve
nominal diameter 40、50、65、80、100、150、200mm
nominal pressure
ANSI: 125、150、300、600Lb
JIS: 10、16、20、30、40K
PN: 1.6、4.0、6.4MPa
connection
flange connection：FF、RF、RJ、LG
flange standard：JIS B2201-1984、ANSI B16.5-1981、JB/79-59
welding connection：SW（40～50mm） BW（65～200mm）
body material （ZG230-450）,（ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、ZG316L）, Ti
upper bonnet
normal temperature（P）：-17～+230℃
extend I type（EⅠ）：-45～-17℃ +230～+566℃
extendⅡtype（EⅡ）：-100～-45℃ extend Ⅲ type（EⅢ）：-196～-100℃
Note: working temperature can not exceed the various materials allowed range
gland type: bolt pressure type
Sealing packing V type PTFE packing, containing PTFE leached asbestos packing, asbestos weave packing, graphite packing
Internal components
valve core type single sleeve plunger core
sleeve type separating sleeve
material
SS（1Cr18Ni9Ti、1Cr18Ni12Mo2Ti、17-4PH、9Cr18、316L）SS bead weld stellite, Ti and anti-corrsive alloy, etc
actuator
type ZHA(B) multi-spring diaphram actuator
diaphragm material: NBR with nylon
spring scope 20～100、80～240KPa
air supply pressure: 140～400kPa
air source interface Rc 1/4
environmental temperature-30～+70℃
Note: this valve can also be equipped with VA5 or VA6 and LVP type actuator
valve acting type pneumatic-close type or pneumatic –open type
Annex locator, air pressure filter, position valve, stroke switches, the transmitter, handwheel mechanism, etc
performance
leakage
metal seat：less than 0.01% of rated volume, in accordance with ANSI B16.104-1976 ClassⅡ
soft seat：less than 10-7 of rated volume, in accordance with ANSI B16.104-1976 ClassⅥ
return difference
with positioner: less than 1% of full stroke
without positioner: less than 3% of full stroke
intrinsic error
with positioner: less than ±1% of full stroke
without positioner: less than ±5% of full stroke
Note: using normal V type PTFE packing
adjustable range 50：1
