10l/S Xbc Type Diesed Engine Fire Pump
Performance Data
| Type |
Capacity (L/S) |
Pd Pressure (MPa) |
Motor Power KW |
n Speed (r/min) |
Efficiency (%) |
(NPSH)r (m) |
| XBC2.9/10-65 | 10 | 0.29 | 8.8 | 1500 | 66 | 2.1 |
| XBC4.1/10-65 | 0.41 | 1800 | ||||
| XBC4.0/10-65 | 10 | 0.41 | 13.8 | 1500 | 66 | 2.1 |
| XBC5.7/10-65 | 0.57 | 1800 | ||||
| XBC5.0/10-65 | 10 | 0.50 | 13.8 | 1500 | 66 | 2.1 |
| XBC7.2/10-65 | 0.72 | 1800 | ||||
| XBC6.1/10-65 | 10 | 0.61 | 13.8 | 1500 | 66 | 2.1 |
| XBC8.8/10-65 | 0.88 | 1800 |

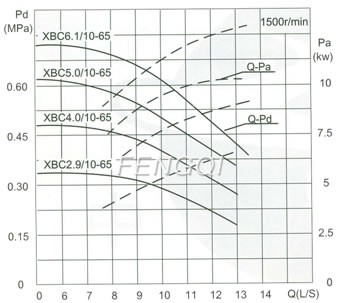

Capacity:10L/S Pressure:0.29-0.88MPa

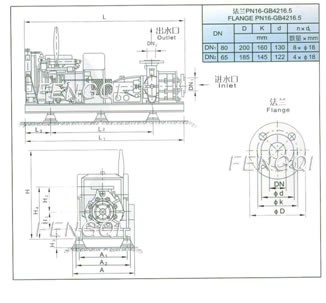

Structure Of 10l/S Xbc Type Diesed Engine Fire Pump
Mounting Dimensions
| Type | H1 | H2 | H3 | H4 | H | L | L1 | L2 | L3 | A1 | A2 | A | Vibration Isolator |
Weight (KG) |
|
| Type | NO. | ||||||||||||||
| XBC2.9/10-65 4.4 |
200 | 275 | 65 | 555 | 620 | 1099 | 1091 | 671 | 155 | 385 | 485 | 800 | JGD2 | 4 | 277 |
| XBC4.0/10-65 5.7 |
200 | 275 | 65 | 555 | 880 | 1645 | 1440 | 1025 | 155 | 445 | 505 | - | JGD 2 | 4 | 459 |
| XBC5.0/10-65 7.2 |
200 | 275 | 65 | 555 | 880 | 1723 | 1518 | 1103 | 155 | 445 | 505 | - | JGD2 | 4 | 481 |
| XBC6.110-65 8.8 |
200 | 275 | 65 | 555 | 880 | 1801 | 1596 | 1181 | 155 | 445 | 505 | - | JGD 2 | 4 | 503 |
