Pumps

40/45 L/S Xbc Type Diesed Engine Fire Pump

Performance Data

Type	Capacity (L/S)	Pd Pressure (MPa)	P Motor Power KW	n Speed (r/min)	Efficiency (%)	(NPSH)r (m)
XBC5.3/40-100	40	0.53	34.3	1500	66	2.0
XBC8.8/40-100	40	0.88	58.8	1500	66	2.0
XBC12.0/40-100	40	1.20	73.5	1500	66	2.0
XBC5.2/45-100	45	0.52	34.3	1500	70	2.5
XBC8.5/45-100	45	0.85	58.8	1500	70	2.5
XBC11.8/45-100	45	1.18	88.3	1500	70	2.5

Capacity:40/45 L/S Pressure:0.53-1.18MPa

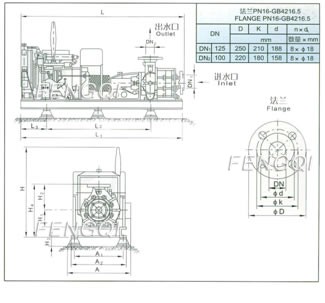

Structure Of 40/45 L/S Xbc Type Diesed Engine Fire Pump

Mounting Dimensions

Type	H1	H2	H3	H4	H	L	L1	L2	L3	A1	A2	A	Vibration Isolator		Weight (KG)
Type	H1	H2	H3	H4	H	L	L1	L2	L3	A1	A2	A	Type	NO.	Weight (KG)
XBC5.3/40-100	280	400	133	800	920	1833	1705	1055	300	445	505	-	JGD4	4	613
XBC8.8/40-100	280	400	133	800	1205	2661	1870	1220	300	694	800	777	JGD4	4	1187
XBC12.0/40-100	280	400	133	800	1205	2791	2000	1350	300	694	800	777	JGD4	4	1261
XBC5.2/45-100	280	400	133	800	920	1833	1705	1055	300	445	505	-	JGD4	4	613
XBC8.5/45-100	280	400	133	800	1205	2661	1870	1220	300	694	800	777	JGD4	4	1187
XBC11.8/45-100	280	400	133	800	1355	2556	2420	1770	300	694	800	795	JGD4	4	1551
