5l/S Xbc Type Diesed Engine Fire Pump

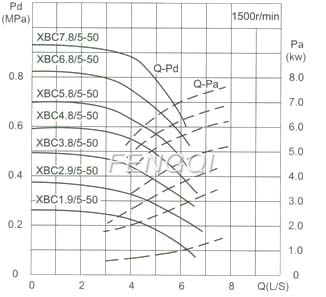

Performance Data
| Type |
Capacity (L/S) |
Pd Pressure (MPa) |
P Motor Power KW |
n Speed (r/min) |
Efficiency (%) |
(NPSH)r (m) |
| XBC1.9/5-50 | 5 | 0.19 | 2.2 | 1500 | 64 | 1.7 |
| XBC2.9/5-50 | 5 | 0.29 | 4.41 | 1500 | 64 | 1.7 |
| XBC3.8/5-50 | 5 | 0.38 | 4.41 | 1500 | 64 | 1.7 |
| XBC4.8/5-50 | 5 | 0.48 | 8.8 | 1500 | 64 | 1.7 |
| XBC5.8/5-50 | 5 | 0.58 | 8.8 | 1500 | 64 | 1.7 |
| XBC6.8/5-50 | 5 | 0.68 0.98 |
8.8 | 1500 | 64 | 1.7 |
| XBC9.8/5-50 | 1800 | |||||
| XBC7.8/5-50 | 5 | 0.78 | 13.8 | 1500 | 64 | 1.7 |
| XBC11.2/5-50 | 1.12 | 1800 |
Capacity:25 L/S Pressure:Pressure:0.31-0.92MPa

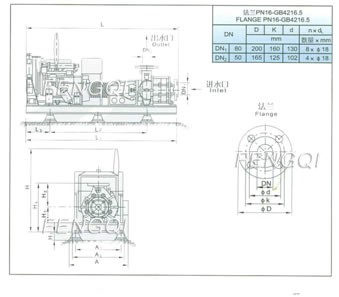

Structure Of 5l/S Xbc Type Diesed Engine Fire Pump
Mounting Dimensions
| Type | H1 | H2 | H3 | H4 | H | L | L1 | L2 | L3 | A1 | A2 | A | Vibration Isolator |
Weight (KG) |
|
| Type | NO. | ||||||||||||||
| XBC3.1/25-80 4.5 |
200 | 325 | 87 | 625 | 900 | 1495 | 1290 | 870 | 180 | 445 | 505 | - | JGD3 | 4 | 447 |
| XBC4.7/25-80 6.8 |
200 | 325 | 87 | 625 | 900 | 1590 | 1385 | 965 | 180 | 445 | 505 | - | JGD3 | 4 | 510 |
| XBC6.4/25-80 9.2 |
200 | 325 | 87 | 625 | 900 | 1885 | 1675 | 1225 | 180 | 445 | 505 | - | JGD3 | 4 | 553 |
