Model IR Single Stage Single Suciton Hot Water Centrifugal Pump
Summary
Model IR Single Stage Single Suciton Hot Water Centrifugal Pump
As an efficient and energy - saving product, model-IR single-stage-single-suction hot water centrifugal pump is suitable for conveying clear water or other liquids similar to water in physical and chemical properties with the temperature of less than 150'C. The pump is mainly used in industrial and civil buildings, for example: metallurgy, power station, textile, chemical, printing & dyeing, ceramic, heating, air-conditioning, waste heat usage, etc. With the flow of 6.3-400 m'/h and the lift of 5-80m, model-IR pump series have two types of running speed: 2900r/min and 1450 r/min. All pumps adopt mechanic seal.

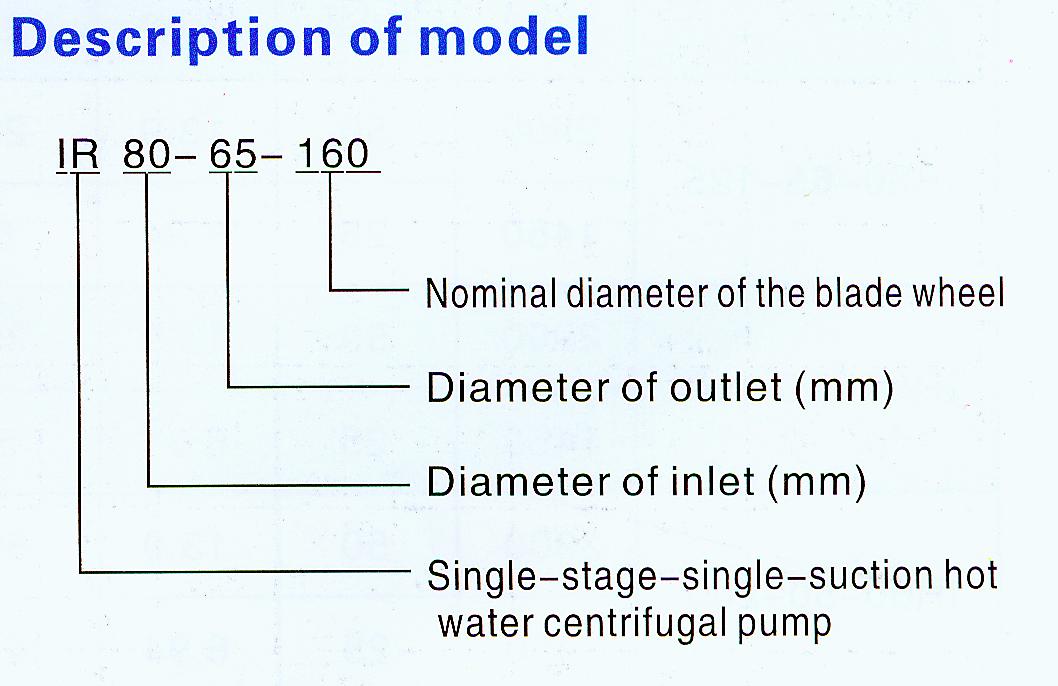

Description of model
| Model | n Speed (r/min) | Q Capacity | H Head m | η Efficiency (%) | (KW) Power | (NPSH) r (m) | weight pimp/base (kg) | ||
| (m3/h) | (L/S) | Shaft Power | Power | ||||||
| IR50-32-125 | 2900 | 12.5 | 3.47 | 20 | 60 | 1.13 | 2.2 | 2 | 47/46 |
| 1450 | 6.3 | 1.74 | 5 | 54 | 0.16 | 0.55 | 2 | 48/38 | |
| IR50-32-160 | 2900 | 12.5 | 3.47 | 32 | 58 | 2.02 | 3 | 2 | 61/46 |
| 1450 | 6.3 | 1.74 | 8 | 48 | 0.29 | 0.55 | 2 | 61/38 | |
| IR50-32-200 | 2900 | 12.5 | 3.47 | 50 | 48 | 3.54 | 5.5 | 2 | 63/66 |
| 1450 | 6.3 | 1.74 | 12.5 | 42 | 0.51 | 0.75 | 2 | 63/38 | |
| IR50-32-250 | 2900 | 12.5 | 3.47 | 80 | 38 | 7.16 | 11 | 2 | 100/110 |
| 1450 | 6.3 | 1.74 | 20 | 32 | 1.07 | 1.5 | 2 | 100/64 | |
| IR65-50-125 | 2900 | 25 | 6.94 | 20 | 69 | 1.97 | 3 | 2.5 | 53/46 |
| 1450 | 12.5 | 3.47 | 5 | 64 | 0.27 | 0.55 | 2 | 53/38 | |
| IR65-50-160 | 2900 | 25 | 6.94 | 32 | 65 | 3.35 | 5.5 | 2 | 55/66 |
| 1450 | 12.5 | 3.47 | 8 | 60 | 0.45 | 0.75 | 2 | 55/38 | |
| IR65-40-200 | 2900 | 25 | 6.94 | 50 | 60 | 5.67 | 7.5 | 2 | 86/66 |
| 1450 | 12.5 | 3.47 | 12.5 | 55 | 0.77 | 1.1 | 2 | 86/46 | |
| IR65-40-250 | 2900 | 25 | 6.94 | 80 | 50 | 10.89 | 15 | 2 | 97/110 |
| 1450 | 12.5 | 3.47 | 20 | 46 | 1.48 | 2.2 | 2 | 97/67 | |
| IR80-65-125 | 2900 | 50 | 13.9 | 20 | 75 | 3.63 | 5.5 | 3 | 48/66 |
| 1450 | 25 | 6.94 | 5 | 71 | 0.48 | 0.75 | 2.5 | 48/38 | |
| IR80-65-160 | 2900 | 50 | 13.9 | 32 | 73 | 5.97 | 7.5 | 2.5 | 49/66 |
| 1450 | 25 | 6.94 | 5 | 69 | 0.79 | 1.5 | 2.5 | 49/46 | |
| IR80-50-200 | 2900 | 50 | 13.9 | 50 | 69 | 9.87 | 15 | 2.5 | 74/66 |
| 1450 | 25 | 6.94 | 12.5 | 65 | 1.31 | 22 | 2.5 | 74/46 | |
| IR80-50-250 | 2900 | 50 | 13.9 | 80 | 63 | 17.3 | 22 | 2.5 | 110/110 |
| 1450 | 25 | 6.94 | 20 | 60 | 2.27 | 3 | 2.5 | 110/64 | |
| Model | n Speed (r/min) | Q Capacity | H Head m | η Efficiency (%) | (KW) Power | (NPSH) r (m) | weight pimp/base (kg) | ||
| (m3/h) | (L/S) | Shaft Power | Power | ||||||
| IRl00-80-125 | 2900 | 100 | 27.8 | 20 | 78 | 7 | 11 | 4.5 | 56/46 |
| 1450 | 50 | 13.9 | 5 | 75 | 0.91 | 1.5 | 2.5 | 56/46 | |
| IR100-80-160 | 2900 | 100 | 27.8 | 32 | 78 | 11.2 | 15 | 4 | 78/110 |
| 1450 | 50 | 13.9 | 8 | 75 | 1.45 | 2.2 | 2.5 | 78/64 | |
| IR100-65-200 | 2900 | 100 | 27.8 | 50 | 76 | 17.9 | 22 | 3.6 | 90/110 |
| 1450 | 50 | 13.9 | 12.5 | 73 | 2.33 | 4 | 2 | 90/64 | |
| IR100-65-250 | 2900 | 100 | 27.8 | 80 | 72 | 30 | 37 | 3.8 | 117/160 |
| 1450 | 50 | 13.9 | 20 | 68 | 4 | 5.5 | 2 | 117/66 | |
| IR125-80-160 | 2900 | 160 | 44.4 | 32 | 79 | 17.7 | 22 | 5.6 | 96/110 |
| 1450 | 80 | 22.2 | 8 | 75 | 2.3 | 4 | 5.6 | 96/64 | |
| IR125-80-200 | 2900 | 160 | 44.4 | 50 | 79 | 27.6 | 37 | 5.2 | 112/160 |
| 1450 | 80 | 22.2 | 12.5 | 75 | 3.6 | 5.5 | 5.2 | 112/64 | |
| IR125-80-250 | 2900 | 160 | 44.4 | 80 | 77 | 45.3 | 55 | 4.8 | 138/315 |
| 1450 | 80 | 22.2 | 20 | 72 | 6 | 11 | 4.8 | 138/111 | |
| IR125-100-200 | 2900 | 200 | 55.6 | 50 | 81 | 33.6 | 45 | 4.5 | 112/160 |
| 1450 | 100 | 27.8 | 12.5 | 76 | 4.48 | 7.5 | 2.5 | 112/66 | |
| IR125-100-250 | 2900 | 200 | 55.6 | 80 | 78 | 55.9 | 75 | 4.2 | 135/295 |
| 1450 | 100 | 27.8 | 20 | 76 | 7.17 | 11 | 2.5 | 135/112 | |
| IR150-125-250 | 2900 | 200 | 55.6 | 20 | 81 | 13.5 | 18.5 | 3 | 158/158 |
| IR150-125-315 | 1450 | 200 | 55.6 | 32 | 79 | 22.08 | 30 | 2.5 | 192/233 |
| IR150-125-400 | 2900 | 200 | 55.6 | 50 | 75 | 36.3 | 45 | 2.8 | 240/233 |
| IR200-150-250 | 1450 | 400 | 111.1 | 20 | 83 | 26.2 | 37 | 4.6 | 203/233 |
| IR200-150-315 | 2900 | 400 | 111.1 | 32 | 82 | 42.5 | 55 | 3.5 | 273/295 |
| IR200-150-400 | 1450 | 400 | 11.1 | 50 | 81 | 67.2 | 90 | 3.8 | 332/295 |
