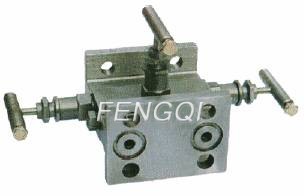

1151T-type Three-Manifold Valve
1151T-type Three-Manifold Valve
Structure of 1151T-type Three-Manifold Valve
Chief Property and Specification
| Type | Nominal Pressure | PS(MPa)Test pressure | Working Pressure |
(°C) Working Temperature |
Applicable medium | ||
| Shell | Seal | Seal | |||||
| 1151-40 | 4.0 | 6.0 | 4.4 | 0.6 | 4.0 | P=540°C |
Petroleum gas Water,Asic,Steam, Oil etc. |
| 1151-320P | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C=425°C | |
Main External and Connecting Dimensions(mm)
| DN(mm) | Dimensions | (Kg) Weight |
|||||
| Nominal diameter | Do | D1 | H | L | L1 | d | |
| 3-6 | 60 | 97 | 220 | 87 | 54 | 3-6 | 2.2 |
