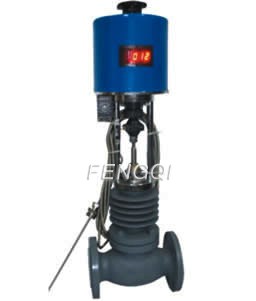

Self-reliance Electric Temperature Regulator
Self-reliance Electric Temperature Regulator
Features
ZZYP, ZZYM type self-reliance electric temperature regulator (applicable to larger diameter and heat conduction oil control) is the latest developed product, the biggest characteristic is only needing connecting 220V power, using media own energy, directly to steam, hot water, hot oil and gas and other media operating convenience, choose tempering range is wide, fast response time, reliable sealing performance and can be sealed in operation of random, and widely used in the oil, food, textile, hotel and restaurant, hot water supply. Shanghai Yihuan flow control equipment Co.,ltd produced regulator integrates sensors, regulators, actuators, saves the automatic temperature control system sensor and regulator purchase cost and installing and debugging time, greatly facilitate control process.
Technial parameters
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
| PN（Mpa） | 1.6 4.0 | ||||||||||||
| flow capacity（m3/h） | 5 | 7 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | |
| rated stroke (mm) | 6 | 8 | 10 | 14 | 20 | 30 | 30 | 30 | 40 | ||||
| temperature adjustable scope（℃） | 0~120 100~250 | ||||||||||||
| adjustable accuracy（℃） | ±1~±5 | ||||||||||||
| applicable medium | steam, water, oil, gas | ||||||||||||
| allowed leakage | hard sealing | 10-4×rated volume | |||||||||||
| soft sealing | “0” | ||||||||||||
| tube length | 3m、5m、10m | ||||||||||||
| thermal bulb immerse depth | 270、430、630 | ||||||||||||
| connecting thread | 3/4 | ||||||||||||
