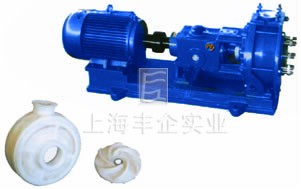

FIU型耐腐耐磨砂漿泵
FIU型耐腐耐磨砂漿泵(簡稱：FIU砂漿泵)系列屬單級單吸懸臂式離心泵，過流部件采用鋼襯超高分子量聚乙烯(UHMWPE)。該材質是目前國際上新代的泵用耐腐耐磨工程塑料，突出的優點事在所有的塑料中它具有優異的耐磨性、耐沖擊性(尤其是耐低溫沖擊)抗蠕變性(因環境應力開裂)和極好的耐腐蝕性。顯著特點：多功能，即一種泵能適應各種不同的工況，如輸送酸、堿性清液或料漿；冶煉行業各種腐蝕性礦漿；硫酸行業各種稀酸；環保行業各類污水等。FIU砂漿泵既耐腐蝕又耐磨損，適用范圍十分廣泛。
FIU型耐腐耐磨砂漿泵
主要技術性簡述
1.型號：FIU系列
2.特點：耐腐耐磨，一泵多用，酸堿類清液料漿均適用。
3.結構：
(1)泵體為超高分子量聚乙烯模壓成型，使用壽命是普通襯套泵的5～6倍。襯層厚8～20mm。
(2)葉輪分開式，閉式兩種，可根據介質狀況任選。
(3)密封：K型動力密封。
4.適用介質：濃度80%以下硫酸，50%以下硝酸，各種濃度的鹽酸，液堿，既適用清液也適用料漿。
5.主要技術參數：適用溫度-20°C～80°C(對特殊要求、使用改性材質，可提高105°C)進口∮32mm～∮250mm,流量5～600M3/h,揚程50m以內。
性能參數表
| 序號 No. | 型號 Type | 流量 Capacity(M3/h) | 揚程 Head (m) | 轉速Speed(r/min) | 功率 (kw) power | 進出口直徑 Inlet outlet diameter (mm×mm) | 重量 Weight (kg) | |
| 軸轉動 Shaft power | 配電電機 Motor power | |||||||
| 1 | 25FIU-3-13 | 3 | 13 | 2900 | 0.3 | 0.75 | 25×20 | 75 |
| 2 | 25FIU-5-12 | 5 | 12 | 2900 | 0.42 | 0.75 | ||
| 3 | 25FIU-7-10 | 7 | 10 | 2900 | 0.5 | 0.75 | ||
| 4 | 25FIU-3-18 | 3 | 18 | 2900 | 0.4 | 1.1 | ||
| 5 | 25FIU-5-15 | 5 | 15 | 2900 | 0.55 | 1.1 | ||
| 6 | 25FIU-8-12 | 8 | 12 | 2900 | 0.7 | 1.1 | ||
| 7 | 32FIU-5-20 | 5 | 20 | 2900 | 0.72 | 1.1 | 32×25 | 80 |
| 8 | 32FIU-8-18 | 8 | 18 | 2900 | 1.2 | 1.5 | ||
| 9 | 32FIU-12-15 | 12 | 15 | 2900 | 1.3 | 2.2 | ||
| 10 | 32FIU-5-25 | 5 | 25 | 2900 | 1.1 | 2.2 | ||
| 11 | 32FIU-10-20 | 10 | 20 | 2900 | 1.6 | 2.2 | ||
| 12 | 32FIU-5-5 | 5 | 5 | 1450 | 0.25 | 0.75 | ||
| 13 | 32FIU-15-15 | 15 | 15 | 2900 | 1.7 | 2.2 | ||
| 14 | 40FIU-10-30 | 10 | 30 | 2900 | 2.2 | 3 | 40×32 | 130 |
| 15 | 40FIU-15-25 | 15 | 25 | 2900 | 2.7 | 3 | ||
| 16 | 40FIU-7.5-6 | 7.5 | 6 | 1450 | 0.4 | 0.75 | ||
| 17 | 40FIU-18-20 | 18 | 20 | 2900 | 2.6 | 3 | ||
| 18 | 40FIU-10-18 | 10 | 18 | 2900 | 1.3 | 2.2 | ||
| 19 | 40FIU-15-15 | 15 | 15 | 2900 | 1.7 | 2.2 | ||
| 20 | 50FIU-15-32 | 15 | 32 | 2900 | 3.5 | 5.5 | 50×40 | 170 |
| 21 | 50FIU-20-30 | 20 | 30 | 2900 | 4.3 | 5.5 | ||
| 22 | 50FIU-10-7.5 | 10 | 7.5 | 1450 | 0.6 | 1.1 | ||
| 23 | 50FIU-25-28 | 25 | 28 | 2900 | 5 | 5.5 | ||
| 24 | 50FIU-10-35 | 10 | 35 | 2900 | 3.2 | 4 | ||
| 25 | 50FIU-12-40 | 12 | 40 | 2900 | 3.8 | 5.5 | ||
| 26 | 50FIU-15-43 | 15 | 43 | 2900 | 5.6 | 7.5 | ||
| 27 | 50FIU-20-20 | 20 | 20 | 2900 | 3 | 4 | ||
| 28 | 50FIU-25-18 | 25 | 18 | 2900 | 3.2 | 4 | ||
| 29 | 50FIU-30-15 | 30 | 15 | 2900 | 3.1 | 4 | ||
| 30 | 65FIU-30-25 | 30 | 25 | 2900 | 5.3 | 5.5 | 65×50 | 220 |
| 31 | 65FIU-35-20 | 35 | 20 | 2900 | 5.1 | 5.5 | ||
| 32 | 65FIU-40-15 | 40 | 15 | 2900 | 4.5 | 5.5 | ||
| 33 | 65FIU-30-32 | 30 | 32 | 2900 | 6.5 | 7.5 | ||
| 34 | 65FIU-15-8 | 15 | 8 | 1450 | 0.9 | 1.1 | ||
| 35 | 65FIU-35-25 | 35 | 25 | 2900 | 6.2 | 7.5 | ||
| 36 | 65FIU-40-20 | 40 | 20 | 2900 | 5.9 | 7.5 | ||
| 37 | 65FIU-10-45 | 10 | 45 | 2900 | 4.8 | 7.5 | ||
| 38 | 65FIU-5-11 | 5 | 11 | 1450 | 0.6 | 1.1 | ||
| 39 | 65FIU-10-40 | 10 | 40 | 2900 | 4.2 | 55 | ||
| 40 | 65FIU-20-50 | 20 | 50 | 2900 | 8.7 | 11 | ||
| 41 | 65FIU-10-12.5 | 10 | 12.5 | 1450 | 1.2 | 2.2 | ||
| 42 | 65FIU-30-50 | 30 | 50 | 2900 | 12 | 15 | ||
| 43 | 65FIU-15-12.5 | 15 | 12.5 | 1450 | 1.6 | 2.2 | ||
| 44 | 65FIU-30-40 | 30 | 40 | 2900 | 9.6 | 11 | ||
| 45 | 80FIU-40-20 | 40 | 20 | 2900 | 5.8 | 7.85 | 80×65 | 270 |
| 46 | 80FIU-45-18 | 45 | 18 | 2900 | 6.1 | 7.5 | ||
| 47 | 80FIU-50-15 | 50 | 15 | 2900 | 5.6 | 7.5 | ||
| 48 | 80FIU-35-45 | 35 | 45 | 2900 | 10.8 | 11 | ||
| 49 | 80FIU-17.5-11 | 17.5 | 11 | 1450 | 1.5 | 2.2 | 100×80 | 370 |
| 50 | 80FIU-40-35 | 40 | 35 | 2900 | 10.2 | 11 | ||
| 51 | 80FIU-45-32 | 45 | 32 | 2900 | 10.1 | 11 | ||
| 52 | 80FIU-50-30 | 50 | 30 | 2900 | 10.2 | 11 | ||
| 53 | 80FIU-60-30 | 60 | 30 | 2900 | 12.6 | 15 | ||
| 54 | 80FIU-45-50 | 45 | 50 | 2900 | 14.8 | 15 | ||
| 55 | 80FIU-22.5-12.5 | 22.5 | 12.5 | 1450 | 2.3 | 3 | ||
| 56 | 80FIU-55-40 | 55 | 40 | 2900 | 15 | 15 | ||
| 57 | 100FIU-50-58 | 50 | 58 | 2900 | 21 | 22 | ||
| 58 | 100FIU-50-50 | 50 | 50 | 2900 | 17.5 | 18.5 | ||
| 59 | 100FIU-60-50 | 60 | 50 | 2900 | 21.5 | 22 | ||
| 60 | 100FIU-60-40-60-40 | 60 | 40 | 2900 | 16.8 | 18.5 | ||
| 61 | 100FIU-60-30-60-30 | 60 | 30 | 2900 | 13.8 | 15 | ||
| 62 | 100FIU-70-45-70-45 | 70 | 45 | 2900 | 22.1 | 22 | ||
| 63 | 100FIU-80-35-80-35 | 80 | 35 | 2900 | 17.8 | 18.5 | ||
| 64 | 100FIU-100-27-100-27 | 100 | 27 | 2900 | 18.4 | 18.5 | ||
| 65 | 100FIU-80-15 | 80 | 15 | 2900 | 10.2 | 11 | 100×80 | 370 |
| 66 | 100FIU-100-20 | 100 | 20 | 2900 | 15 | 15 | ||
| 67 | 100FIU-80-50 | 80 | 50 | 2900 | 27 | 30 | ||
| 68 | 100FIU-100-45 | 100 | 45 | 2900 | 28 | 30 | ||
| 69 | 100FIU-50-11 | 50 | 11 | 1450 | 4.2 | 5.5 | ||
| 70 | 100FIU-120-40 | 120 | 40 | 2900 | 28.5 | 30 | ||
| 71 | 100FIU-145-28 | 145 | 28 | 2900 | 29.5 | 30 | ||
| 72 | 100FIU-80-30 | 80 | 30 | 2900 | 17.5 | 18.5 | ||
| 73 | 100FIU-100-25 | 10 | 25 | 2900 | 17..9 | 18.5 | ||
| 74 | 100FIU-120-20 | 120 | 20 | 2900 | 17.2 | 18.5 | ||
| 75 | 100FIU-140-15 | 140 | 15 | 2900 | 16.8 | 18.5 | ||
| 76 | 100FIU-100-20 | 100 | 20 | 2900 | 14.9 | 15 | ||
| 77 | 100FIU-120-15 | 120 | 15 | 2900 | 14.2 | 15 | ||
| 78 | 100FIU-140-10 | 140 | 10 | 2900 | 14.5 | 15 | ||
| 79 | 125FIU-100-40 | 100 | 40 | 2900 | 28.8 | 30 | ||
| 80 | 125FIU-120-35 | 120 | 35 | 2900 | 29.4 | 30 | 150×125 | 1000 |
| 81 | 125FIU-140-25 | 140 | 25 | 2900 | 25 | 30 | ||
| 82 | 125FIU-120-32 | 120 | 32 | 2900 | 26.8 | 30 | ||
| 83 | 125FIU-140-28 | 140 | 28 | 2900 | 27.6 | 30 | ||
| 84 | 125FIU-160-24 | 160 | 24 | 2900 | 28.1 | 30 | ||
| 85 | 125FIU-120-20 | 120 | 20 | 2900 | 17.2 | 18.5 | ||
| 86 | 125FIU-140-18 | 140 | 18 | 2900 | 21 | 22 | ||
| 87 | 125FIU-150-15 | 150 | 15 | 2900 | 21.5 | 22 | ||
| 88 | 125FIU-80-15 | 80 | 15 | 1450 | 10.2 | 11 | ||
| 89 | 150FIU-120-25 | 120 | 25 | 1450 | 22 | 30 | ||
| 90 | 150FIU-80-11 | 80 | 11 | 980 | 8.9 | 11 | ||
| 91 | 150FIU-150-20 | 150 | 20 | 1450 | 24.5 | 30 | ||
| 92 | 150FIU-180-30 | 180 | 30 | 1450 | 35.5 | 37 | ||
| 93 | 150FIU-210-26 | 210 | 26 | 1450 | 36.4 | 37 | ||
| 94 | 150FIU-148-11 | 148 | 11 | 980 | 15 | 15 | ||
| 95 | 150FIU-240-24 | 240 | 24 | 1450 | 37 | 37 | ||
| 96 | 150FIU-270-20 | 270 | 20 | 1450 | 36 | 37 | ||
| 97 | 150FIU-190-18 | 190 | 18 | 1450 | 22 | 22 | ||
| 98 | 150FIU-135-8 | 135 | 8 | 980 | 10.5 | 11 | ||
| 99 | 150FIU-260-16 | 260 | 16 | 1450 | 28 | 30 | ||
| 100 | 150FIU-280-14 | 280 | 14 | 1450 | 28.2 | 30 | ||
| 101 | 150FIU-120-40 | 120 | 40 | 1450 | 33.6 | 37 | ||
| 102 | 150FIU-150-40 | 150 | 40 | 1450 | 42 | 45 | ||
| 103 | 150FIU-101-18 | 101 | 18 | 980 | 12.8 | 15 | ||
| 104 | 150FIU-200-32 | 200 | 32 | 1450 | 44 | 45 | ||
| 105 | 150FIU-250-30 | 250 | 30 | 1450 | 44.5 | 45 | ||
| 106 | 150FIU-300-25 | 300 | 25 | 1450 | 45 | 45 | 200×150 | 1200 |
| 107 | 200FIU-320-32 | 320 | 32 | 1450 | 55 | 55 | ||
| 108 | 200FIU-210-14 | 210 | 14 | 980 | 18.4 | 18.5 | ||
| 109 | 200FIU-350-28 | 350 | 28 | 1450 | 55 | 55 | ||
| 110 | 200FIU-400-25 | 400 | 25 | 1450 | 70 | 75 | ||
| 111 | 200FIU-250-45 | 250 | 45 | 1450 | 74 | 75 | ||
| 112 | 200FIU-168-20 | 168 | 20 | 980 | 27 | 30 | ||
| 113 | 200FIU-300-38 | 300 | 38 | 1450 | 72 | 75 | ||
| 114 | 200FIU-350-34 | 350 | 34 | 1450 | 73.8 | 75 | ||
| 115 | 200FIU-320-24 | 320 | 24 | 1450 | 42 | 45 | ||
| 116 | 200FIU-215-10 | 215 | 10 | 980 | 15.6 | 18.5 | ||
| 117 | 200FIU-350-20 | 350 | 20 | 1450 | 43 | 45 | ||
| 118 | 200FIU-400-18 | 400 | 18 | 1450 | 44 | 45 | ||
| 119 | 200FIU-500-12 | 500 | 12 | 1450 | 45 | 45 | ||
| 120 | 250FIU-400-45 | 400 | 45 | 1450 | 112 | 132 | 250×200 | 1450 |
| 121 | 250FIU-270-20 | 270 | 20 | 980 | 35 | 37 | ||
| 122 | 250FIU-500-37 | 500 | 37 | 1450 | 118 | 132 | ||
| 123 | 250FIU-600-30 | 600 | 30 | 1450 | 120 | 132 | ||
| 124 | 250FIU-400-32 | 400 | 32 | 1450 | 85 | 90 | ||
| 125 | 250FIU-270-14 | 270 | 14 | 980 | 25 | 30 | ||
| 126 | 250FIU-500-26 | 500 | 26 | 1450 | 79 | 90 | ||
| 127 | 250FIU-600-20 | 600 | 20 | 1450 | 84 | 90 | ||
訂購注意事項：
FIU型耐腐耐磨砂漿泵產品電子樣本所涵蓋的參數表、性能表、尺寸表、圖片、文字描述及產品結構等信息，僅為豐企實業FIU型耐腐耐磨砂漿泵說明書的一部分，供選型參考之用，詳細水泵產品使用說明書、CAD圖紙、安裝尺寸圖、水泵重量及詳細的工作原理、價格等請來電咨詢。
